Vault Secrets in a browser plugin challenge

11min
|
Vault
Video

Within your organization there is a need to help its members better manage their secrets. Vault centrally manages secrets to reduce secrets sprawl but may increase workflow friction. To make it easier for individuals to use Vault requires the development of tools to integrate best with their current workflow.

This developer focused tutorial challenges you to build a browser extension that authenticates with Vault and reads a secret through the API.

Prerequisites

This tutorial requires the Chrome browser and a code editor.

Retrieve the browser plugin by cloning the hashicorp/vault-guides repository from GitHub.

$ git clone https://github.com/hashicorp/vault-guides.git

This repository contains supporting content for all of the Vault learn tutorials. The content specific to this tutorial can be found within a sub-directory.

Go into the vault-guides/secrets/browser-plugin directory.

$ cd vault-guides/secrets/browser-plugin

Working directory

This tutorial assumes that the remainder of commands are executed in this directory.

Start Vault

In a new terminal, start a Vault dev server.

$ vault server -dev -dev-root-token-id root

Insecure operation

Do not run a Vault dev server in production. This approach is only used here to simplify the unsealing process for this demonstration.

Return to the first terminal and export an environment variable for the vault CLI to address the Vault server.

$ export VAULT_ADDR=http://127.0.0.1:8200

$ vault login root
Success! You are now authenticated. The token information displayed below
is already stored in the token helper. You do NOT need to run "vault login"
again. Future Vault requests will automatically use this token.

Key                  Value
---                  -----
token                root
token_accessor       6NYAtL0ANmAGVmLX3tx4bVgu
token_duration       ∞
token_renewable      false
token_policies       ["root"]
identity_policies    []
policies             ["root"]

Setup Vault authentication

The browser plugin uses the Userpass authentication method.

Enable the userpass authentication method.

$ vault auth enable userpass
Success! Enabled userpass auth method at: userpass/

Create a user named browser with the password browser.

$ vault write auth/userpass/users/browser password=browser
Success! Data written to: auth/userpass/users/browser

Load the plugin

Launch Chrome.
From the Extensions menu, select Manage Extensions.
From the Extensions page, enable Developer mode.

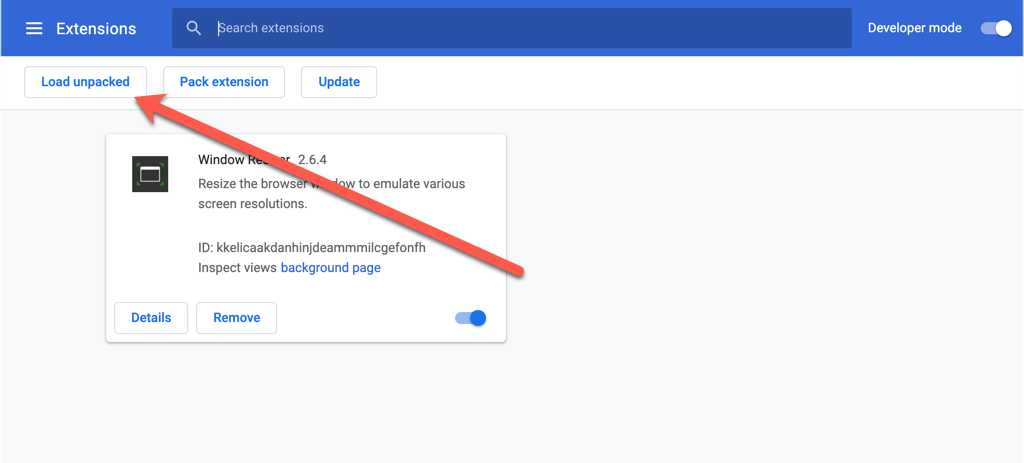

Select Load unpacked and open the vault-guides/secrets/browser-plugin/chrome directory.

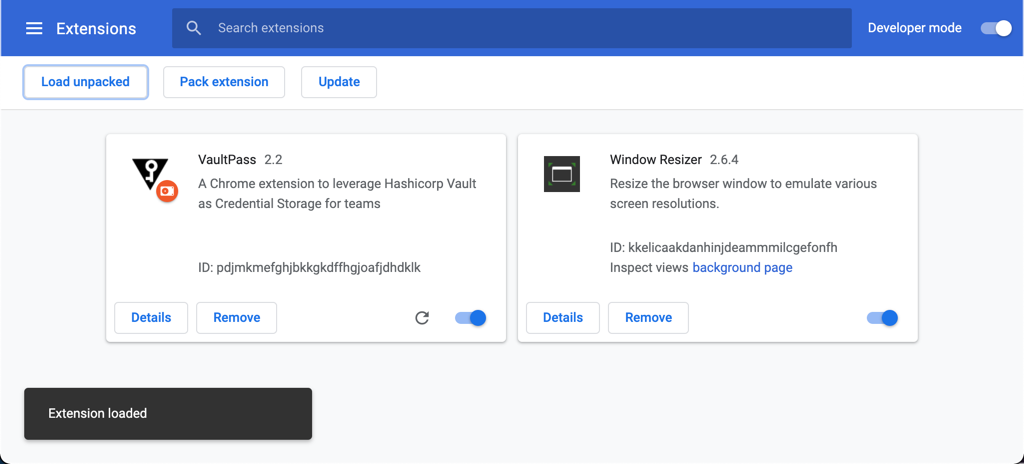

The plugin loads and appears in the extensions page.
From the Extensions menu, pin the VaultPass extension.
The plugin is loaded.

Perform stubbed authentication

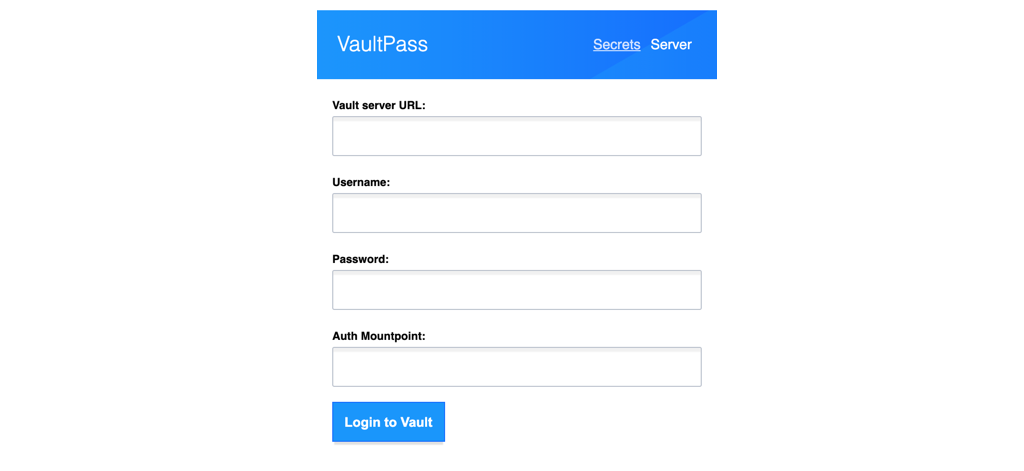

The plugin implements an authentication form that performs a stubbed authentication.

Click the plugin to open it.
Select the Server tab.
Enter http://localhost:8200 in the Vault server URL field.
Enter browser in the Username field.
Enter browser in the Password field.
Enter userpass in the Auth Mountpoint field.
Click Login to Vault.
The view displays a stubbed list of policies and a stubbed token.

Implement authentication

The options page contains the authentication form. This page is managed with an HTML file, options.html and a JavaScript file, options.js.

Open options.js in an editor.

// Authorize to Vault with the server location, credentials, and auth path.
async function authToVault(vaultServer, username, password, authMount) {
  const authinfo = {
    client_token: 'STUB_TOKEN',
    policies: ['default', 'vault-pass'],
  }

  // TODO: authToVault
  //
  // 1. Create the authentication URL with the username
  // 2. Perform a fetch of the authenication URL
  //      - method: 'POST'
  //      - headers: 'Content-Type': 'application/json'
  //      - body: JSON.stringify the password.
  //
  // 3. With a successful response, read the body as JSON
  // 4. With an error, notify an error

  await browser.storage.local.set({ vaultToken: authinfo.client_token })
  await browser.storage.local.set({ vaultTokenPolicies: authinfo.policies })
  showAsLoggedInWith(authinfo.client_token, authinfo.policies)
}

The authToVault function is stubbed. The Vault token and policies are retrieved from an object that mimics the data returned from the Vault API.

The Vault token and policies are stored in the browser's local storage and then those values are sent to the showAsLoggedInWith function. A TODO in the function outlines the steps required to implement an actual authentication request with Vault.

Create an authentication URL with the username.
```
var loginUrl = `${vaultServer}/v1/auth/${authMount}/login/${username}`
```
The authentication URL is created from the vaultServer, the authMount and the username.
Perform a fetch of the authenication URL.
```
fetch(loginUrl, {
  method: 'POST',
  headers: {
    'Content-Type': 'application/json',
  },
  body: JSON.stringify({ password: password }),
})
```
The fetch function requires the loginUrl as the first parameter. An object that describes the request is provided as a second parameter. The request's method is a POST and the Content-Type ensures that the response is formatted as JSON. The body includes a JSON stringified object with the password.
With a successful response, read the body as JSON.
Append to the end of the fetch method an invocation of then that is sent an anonymous function to extract the JSON data from the response. Then append another invocation of then that is sent an anonymous function to parse the JSON data.
```
  .then(response => {
    return response.json()
  }).then( json => {
    const authinfo = json.auth;
    browser.storage.local.set({ 'vaultToken': authinfo.client_token });
    browser.storage.local.set({ 'vaultTokenPolicies': authinfo.policies });
    showAsLoggedInWith(authinfo.client_token, authinfo.policies);
  })
```
The Vault token and policies are retrieved from the response, stored in to the browser storage and then those values are sent to the showAsLoggedInWith function.

With an error, notify an error.

Append to the end of the fetch method an invocation of catch that is sent an anonymous function to notify an error with an error message.

.catch(error => {
    notify.error(`
      There was an error while calling<br>
      ${loginUrl}<br>
      Please check if your username, password and mountpoints are correct.
      ${error}
    `);
  })

This error catches any issues with the URL, failed authentication, or errors parsing the response data.

Show complete authToVault function

async function authToVault(vaultServer, username, password, authMount) {
  var loginUrl = `${vaultServer}/v1/auth/${authMount}/login/${username}`

  fetch(loginUrl, {
    method: 'POST',
    headers: {
      'Content-Type': 'application/json',
    },
    body: JSON.stringify({ password: password }),
  })
  .then((response) => {
    return response.json()
  })
  .then((json) => {
    const authinfo = json.auth
    browser.storage.local.set({ vaultToken: authinfo.client_token })
    browser.storage.local.set({ vaultTokenPolicies: authinfo.policies })
    showAsLoggedInWith(authinfo.client_token, authinfo.policies)
  })
  .catch((error) => {
    notify.error(`
      There was an error while calling<br>
      ${loginUrl}<br>
      Please check if your username, password and mountpoints are correct.
      ${error}
    `)
  })
}

Save the changes to options.js.
From Chrome's extension menu, select Update.
Click the plugin to open it.
Select the Server tab.
Select Logout.
Enter http://localhost:8200 in the Vault server URL field.
Enter browser in the Username field.
Enter browser in the Password field.
Enter userpass in the Auth Mountpoint field.
Click Login to Vault.
The view displays the token's policies and the token.

Setup Vault for secrets

Every browser tab has a URL that maps to a browser specific page or a host. The plugin parses that URL for the hostname and then retrieves a secret from Vault with that value.

Browser Tab	Vault Secret
`chrome://extensions/`	`/v1/vaultpass/data/extensions`
`https://learn.hashicorp.com/`	`/v1/vaultpass/data/learn.hashicorp.com`

Enable a KV-V2 secrets engine with the path vaultpass.

$ vault secrets enable -path=vaultpass kv-v2
Success! Enabled the kv-v2 secrets engine at: vaultpass/

Create a secret for the extensions page.

$ vault kv put vaultpass/extensions username=extension_user password=extension_password
Key              Value
---              -----
created_time     2021-06-29T17:11:12.577896Z
deletion_time    n/a
destroyed        false
version          1

Create a policy named vault_pass-policy that grants read access to all secrets at the path vaultpass.

$ vault policy write vault_pass-policy - <<EOF
path "vaultpass/*" {
  capabilities = [ "read" ]
}
EOF

Update the user named browser to grant it the vault_pass-policy policy.

$ vault write auth/userpass/users/browser policies=vault_pass-policy
Success! Data written to: auth/userpass/users/browser

Implement secret retrieval

The popup page contains the secrets retrieved for the current page. This page is managed with an HTML file, popup.html and a JavaScript file, popup.js.

Open popup.js in an editor.

async function getSecretsAtUrl(secretsUrl, vaultToken, withSecrets) {
  // TODO: getSecretsAtUrl
  //
  // 1. Perform a fetch of the secret URL
  //      - method: 'GET'
  //      - headers: 'Content-Type': 'application/json'
  //      - headers: 'X-Vault-Token': vaultToken
  //
  // 2. With a successful response, read the body as JSON and send the secrets
  //      to the `withSecrets` method.
  // 3. With an error, notify an error

  const stubSecrets = {
    data: {
      data: {
        username: 'stub_username',
        password: 'stub_password',
      },
    },
  }

  withSecrets(Object.entries(stubSecrets.data.data))
}

The getSecretsAtUrl function is stubbed. The function creates an Object that mimics the secret response from the Vault API. The response is mapped to an array of entries ([ [ 'username', 'stub_username' ], [ 'password', 'stub_password'] ]) and sent to the withSecrets method. A TODO in the function outlines the steps required to implement this secrets request.

Perform a fetch of the secret URL
```
fetch(secretsUrl, {
  method: 'GET',
  headers: {
    'Content-Type': 'application/json',
    'X-Vault-Token': vaultToken,
  },
})
```
The fetch function requires the secretsUrl as the first parameter. An object that describes the request is provided as a second parameter. The request's method is a GET. The headers include the Content-Type to ensure the response is JSON and X-Vault-Token for authentication.
With a successful response, read the body as JSON and send the secrets to the withSecrets method.
Append to the end of the fetch method an invocation of then that is sent an anonymous function to extract the JSON data from the response. Then append another invocation of then that is sent an anonymous function that maps the data to an array of entries that are sent to the withSecrets method.
```
.then((response) => {
    return response.json()
})
.then((json) => {
  withSecrets(Object.entries(json.data.data))
})
```

With an error, notify an error.

Append to the end of the fetch method an invocation of catch that is sent an anonymous function to notify an error with an error message that contains the secretsUrl and the error.

.catch((error) => {
  // Catches response errors
  // Also catches the error when the json does not have the data key
  notify.error(`Not able to read secrets at ${secretsUrl} <br/> ${error}`, {
    removeOption: true,
  })
})

This error catches any issues with the request or errors parsing the response data.

Show complete getSecretsAtUrl function

async function getSecretsAtUrl(secretsUrl, vaultToken, withSecrets) {
  fetch(secretsUrl, {
    method: 'GET',
    headers: {
      'X-Vault-Token': vaultToken,
      'Content-Type': 'application/json',
    },
  })
  .then((response) => {
    return response.json()
  })
  .then((json) => {
    withSecrets(Object.entries(json.data.data))
  })
  .catch((error) => {
    // Catches response errors
    // Also catches the error when the json does not have the data key
    notify.error(`Not able to read secrets at ${secretsUrl} <br/> ${error}`, {
      removeOption: true,
    })
  })
}

Save the changes to popup.js.
From Chrome's extension menu, select Update.
Click the plugin to open it.
Select Logout and login again with the same credentials.
Select the Secrets tab.
The secrets that appear are the ones set up at the secret path vaultpass/extensions.

Next Steps

You imported a browser plugin and then implemented authentication and secrets retrieval. Expand this plugin by providing:

support to create secrets in the plugin. The secrets that appear when on the extensions page were set through through CLI. When the response contains no secrets the plugin would display a form that allowed the user to enter their own secrets for the page.
support for multiple users to have unique secrets. All of the secrets are stored in the vaultpass path. Additional users would require the path schema to change.
support for more than KV-V2 secrets. When a user visits a page for a cloud provider login (e.g. Amazon, Azure, Google) the plugin could request dynamic credentials to use for login.
support for secret entry on the page. Popular password plugins find the login fields on the page and insert the secrets. Learn more from the vaultPass project which expands on this plugin further.
