Securely connect your services with Consul service mesh

16min
|
Consul
Interactive

Workflow

In the previous tutorial, you deployed Consul client agents and registered services to your Consul catalog.

In this tutorial, you will introduce zero trust security in your network by implementing Consul service mesh. This will enable secure service-to-service communication and allow you to leverage Consul's full suite of features.

In order to do this, you will edit the service definitions on your Consul clients, launch Envoy sidecar proxies, and create service intentions to allow traffic across your services in your network.

In this tutorial, you will:

Review and create intentions to manage traffic permissions
Modify Consul services' configuration for Consul service mesh
Start Envoy sidecar proxy for each service in the mesh
Restart the services to listen on localhost interface

Tutorial scenario

This tutorial uses HashiCups, a demo coffee shop application made up of several microservices running on VMs.

At the beginning of the tutorial, you have a Consul datacenter with one server and four clients running on VMs. The services connect directly to each other using the VMs address and access every service in the network.

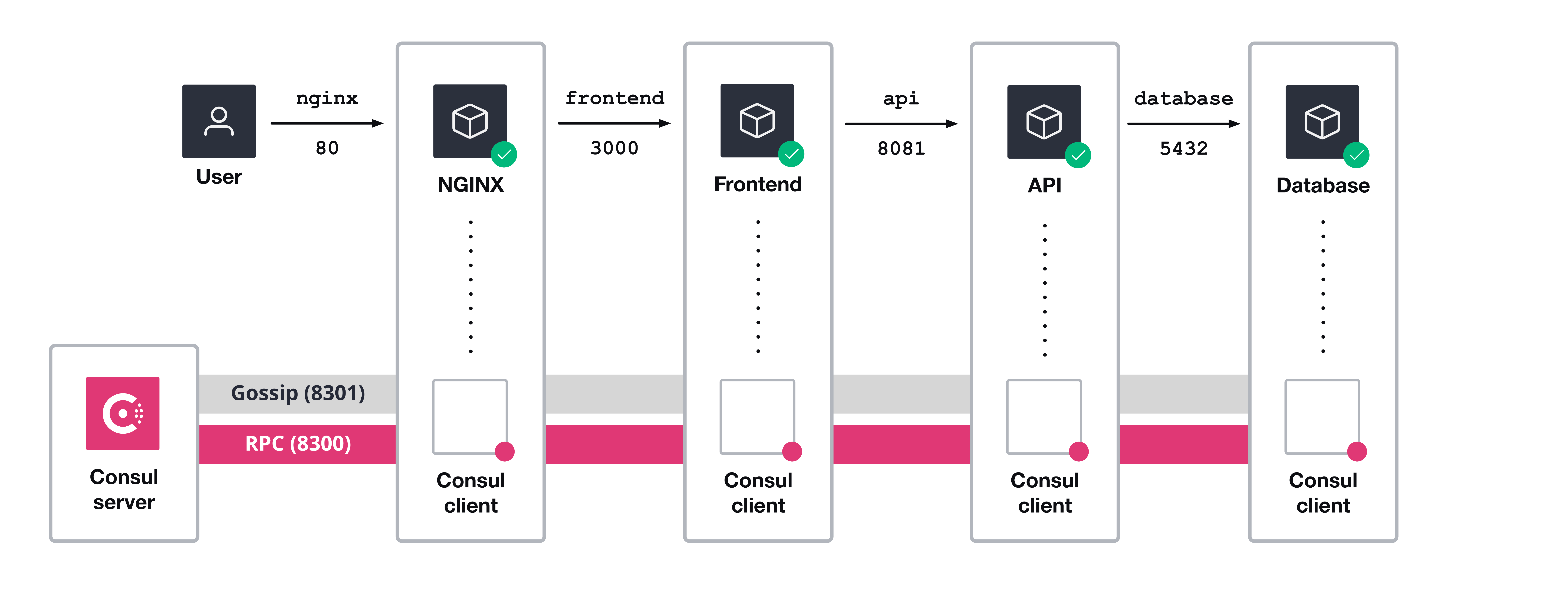

Architectural diagram 02

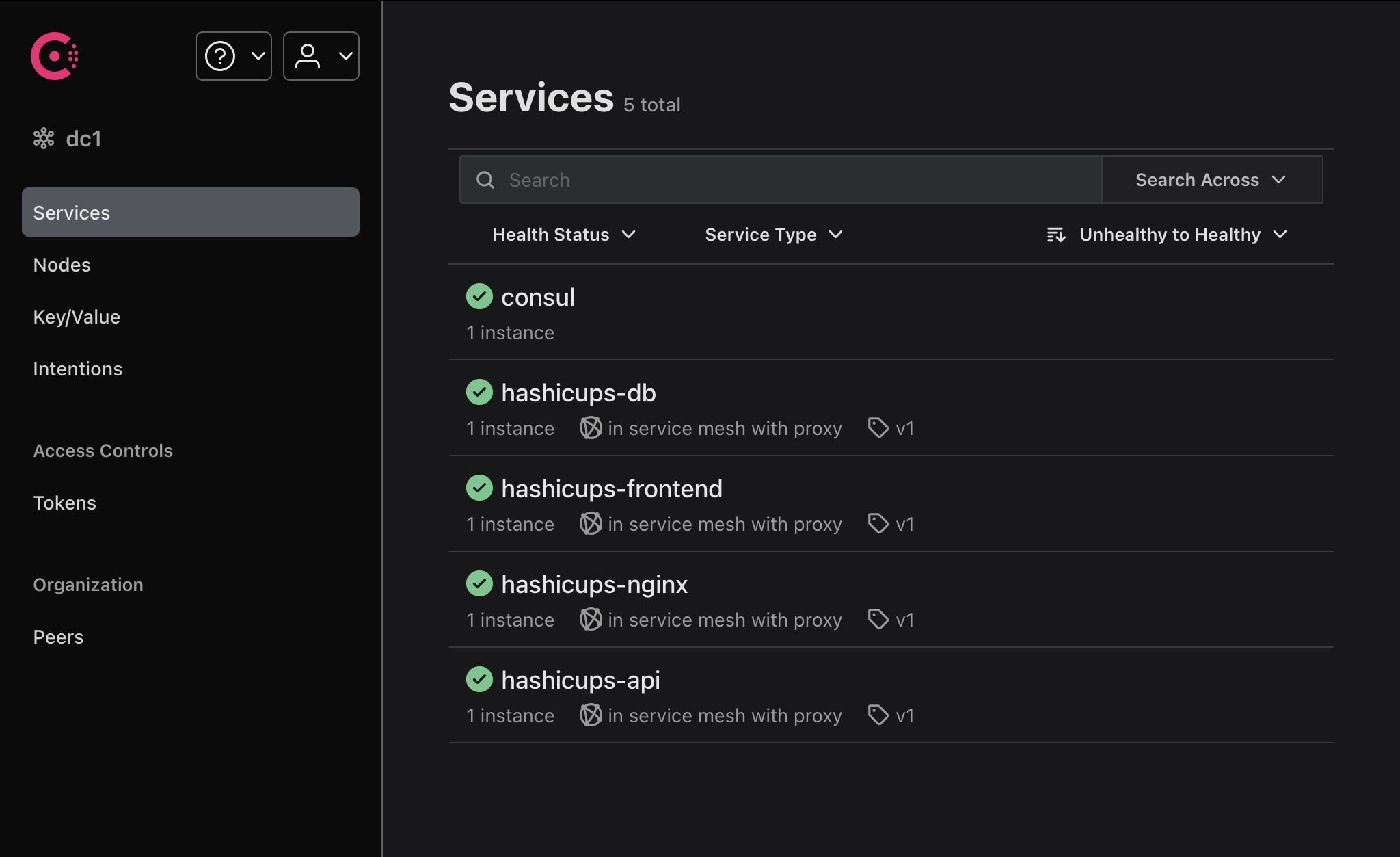

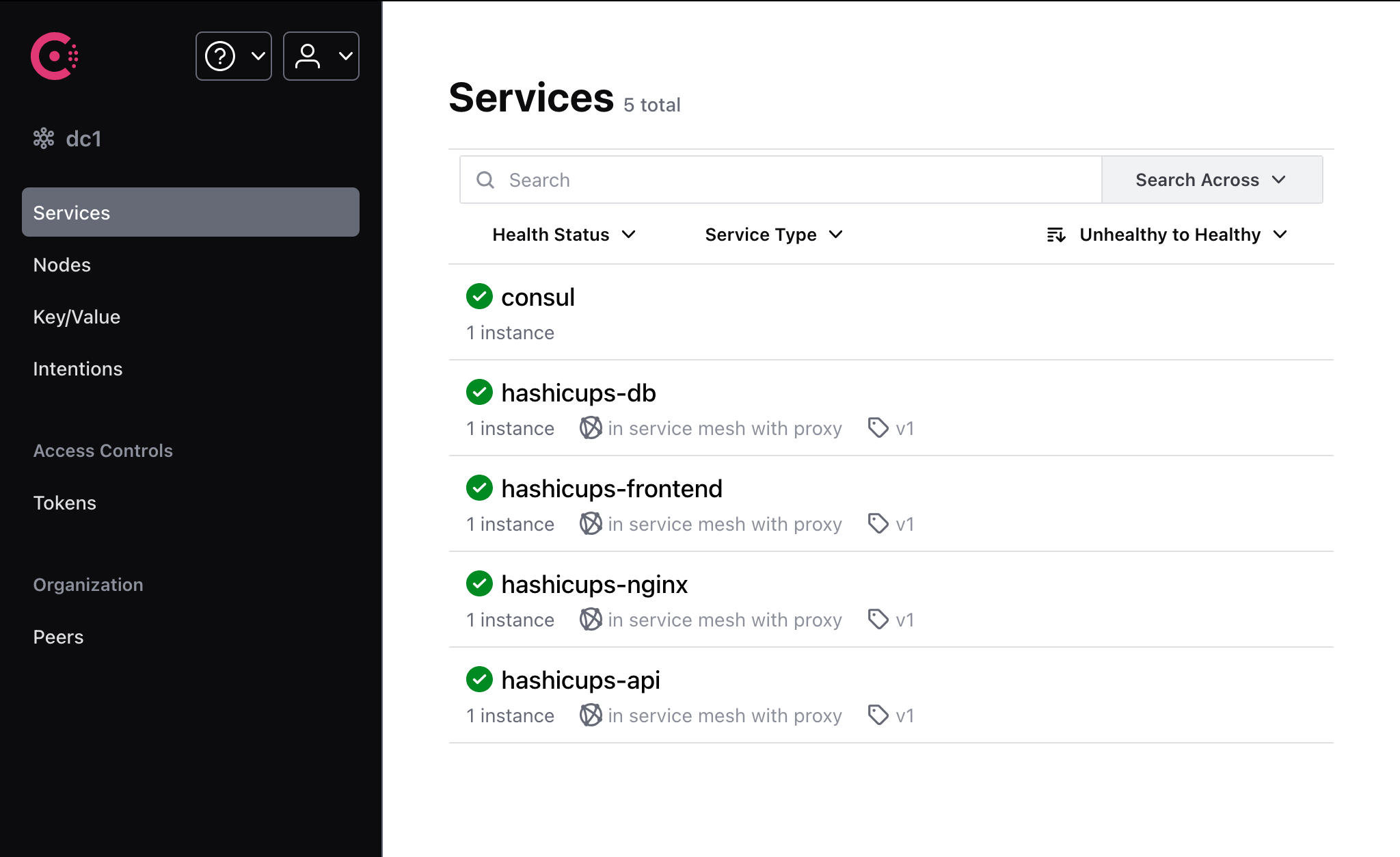

By the end of this tutorial, you will have a fully deployed Consul service mesh with Envoy sidecar proxies running alongside each service. The services will be configured so they cannot be reachable, unless explicitly allowed through Consul service intentions.

Architectural diagram 03

Prerequisites

If you completed the previous tutorial, the infrastructure is already in place with all prerequisites needed.

For this tutorial, you will need:

An AWS account configured for use with Terraform
aws-cli >= 2.0
terraform >= 1.0
consul >= 1.15.0

Clone GitHub repository

Clone the GitHub repository containing the configuration files and resources.

$ git clone https://github.com/hashicorp-education/learn-consul-get-started-vms

Change into the directory that contains the complete configuration files for this tutorial.

$ cd learn-consul-get-started-vms/self-managed/infrastructure/aws

Create infrastructure

With these Terraform configuration files, you are ready to deploy your infrastructure.

Issue the terraform init command from your working directory to download the necessary providers and initialize the backend.

$ terraform init
Initializing the backend...
Initializing provider plugins...
...
Terraform has been successfully initialized!
...

Then, deploy the resources. Confirm the run by entering yes.

$ terraform apply -var-file=./conf/02_service_discovery.tfvars
## ...
Do you want to perform these actions?
 Terraform will perform the actions described above.
 Only 'yes' will be accepted to approve.
 Enter a value: yes
## ...
Apply complete! Resources: 49 added, 0 changed, 0 destroyed.

Tip

The Terraform deployment could take up to 15 minutes to complete. Feel free to explore the next sections of this tutorial while waiting for the environment to complete initialization or learn more about the Raft protocol in a fun, interactive way.

Once the deployment is complete, Terraform will return a list of outputs you can use to interact with the newly created environment.

Outputs:

connection_string = "ssh -i certs/id_rsa.pem admin@`terraform output -raw ip_bastion`"
ip_bastion = "<redacted-output>"
remote_ops = "export BASTION_HOST=<redacted-output>"
retry_join = "provider=aws tag_key=ConsulJoinTag tag_value=auto-join-hcoc"
ui_consul = "https://<redacted-output>:8443"
ui_grafana = "http://<redacted-output>:3000/d/hashicups/hashicups"
ui_hashicups = "http://<redacted-output>"

The Terraform outputs provide useful information, including the bastion host IP address. The following is a brief description of the Terraform outputs:

The ip_bastion provides IP address of the bastion host you will use to run the rest of the commands in this tutorial.
The remote_ops lists the bastion host IP, which you can use access the bastion host.
The retry_join output lists Consul's retry_join configuration parameter. The next tutorial will use this to generate Consul server and client configuration.
The ui_consul output lists the Consul UI address. The Consul UI is not currently running. You will use this in a later tutorial to verify Consul started correctly.
The ui_grafana output lists the Grafana UI address. You will use this in a future tutorial.
The ui_hashicups output lists the HashiCups UI address. You can use it to verify the HashiCups demo application is running properly.

Terraform output provides a series of useful information, including bastion host IP address.

$ ssh -i certs/id_rsa.pem admin@`terraform output -raw ip_bastion`

Verify Envoy binary

Check on each of the client nodes to verify Envoy is installed.

NGINX : hashicups-nginx
Frontend: hashicups-frontend
API: hashicups-api
Database: hashicups-db

For example, to check Envoy installation on the Database VM.

$ ssh -i certs/id_rsa hashicups-db

Verify Envoy binary is installed.

$ envoy --version
envoy  version: cfa32deca25ac57c2bbecdad72807a9b13493fc1/1.26.4/Clean/RELEASE/BoringSSL

Check if the Envoy version is compatible with the Consul version running using the related compatibility matrix.

Return to the bastion host by exiting the SSH session.

$ exit

Repeat the steps for all VMs you want to add to the Consul service mesh.

Configure environment

This tutorial and interactive lab environment uses scripts in the tutorial's GitHub repository to generate the Consul configuration files for your client agents.

Define scenario environment variables again.

$ export DATACENTER="dc1"; \
export DOMAIN="consul"; \
export OUTPUT_FOLDER="./assets/scenario/conf/"; \
export CONSUL_CONFIG_DIR="/etc/consul.d/"

Configure the Consul CLI to interact with the Consul server.

$ export CONSUL_HTTP_ADDR="https://consul-server-0:8443" \
export CONSUL_HTTP_SSL=true \
export CONSUL_CACERT="${OUTPUT_FOLDER}secrets/consul-agent-ca.pem" \
export CONSUL_TLS_SERVER_NAME="server.${DATACENTER}.${DOMAIN}"

To interact with Consul, you need to set CONSUL_HTTP_TOKEN to a valid Consul token. For this tutorial, you will use the token you created during the ACL bootstrap.

If you completed the previous tutorial, the bootstrap token is located the home directory in a file named acl-token-bootstrap.json.

$ export CONSUL_HTTP_TOKEN=`cat ./acl-token-bootstrap.json | jq -r ".SecretID"`

If you are starting your journey from this tutorial, the token is located in the configuration directory in a file named acl-token-bootstrap.json.

$ export CONSUL_HTTP_TOKEN=`cat ${OUTPUT_FOLDER}secrets/acl-token-bootstrap.json | jq -r ".SecretID"`

Review and create intentions

The initial Consul configuration denies all service connections by default. We recommend this setting in production environments to follow the "least-privilege" principle, by restricting all network access unless explicitly defined.

Intentions let you allow and restrict access between services. Intentions are destination-orientated — this means you create the intentions for the destination, then define which services can access it.

The following intentions are required for HashiCups:

Tip

Notice these descriptions show traffic going from the destination to the source service.

The db service needs to be reached by the api service.
The api service needs to be reached by the nginx services.
The frontend service needs to be reached by the nginx service.

Use the provided script to generate service intentions.

$ bash ops/scenarios/99_supporting_scripts/generate_consul_service_intentions.sh
Parameter Check
Create global proxy configuration
Create intention configuration files

Check the files generated by the script.

$ tree ${OUTPUT_FOLDER}/global
./assets/scenario/conf//global
├── config-global-proxy-default.hcl
├── config-global-proxy-default.json
├── intention-allow-all.hcl
├── intention-allow-all.json
├── intention-api.hcl
├── intention-api.json
├── intention-db.hcl
├── intention-db.json
├── intention-frontend.hcl
└── intention-frontend.json

0 directories, 10 files

Finally apply the intentions to your Consul datacenter.

Use config write to create the following intentions.

Create the intentions for the db service.

$ consul config write ${OUTPUT_FOLDER}global/intention-db.hcl
Config entry written: service-intentions/hashicups-db

Create the intentions for the api service.

$ consul config write ${OUTPUT_FOLDER}global/intention-api.hcl
Config entry written: service-intentions/hashicups-api

Create the intentions for the frontend service.

$ consul config write ${OUTPUT_FOLDER}global/intention-frontend.hcl
Config entry written: service-intentions/hashicups-frontend

Use the /v1/config API endpoint to create the following intention.

Create the intentions for the db service.

$ curl --silent \
  --header "X-Consul-Token: $CONSUL_HTTP_TOKEN" \
  --connect-to server.${CONSUL_DATACENTER}.${CONSUL_DOMAIN}:8443:consul-server-0:8443 \
  --cacert ${CONSUL_CACERT} \
  --data @${OUTPUT_FOLDER}global/intention-db.json \
  --request PUT \
  https://server.${CONSUL_DATACENTER}.${CONSUL_DOMAIN}:8443/v1/config

Create the intentions for the api service.

$ curl --silent \
  --header "X-Consul-Token: $CONSUL_HTTP_TOKEN" \
  --connect-to server.${CONSUL_DATACENTER}.${CONSUL_DOMAIN}:8443:consul-server-0:8443 \
  --cacert ${CONSUL_CACERT} \
  --data @${OUTPUT_FOLDER}global/intention-api.json \
  --request PUT \
  https://server.${CONSUL_DATACENTER}.${CONSUL_DOMAIN}:8443/v1/config

Create the intentions for the frontend service.

$ curl --silent \
  --header "X-Consul-Token: $CONSUL_HTTP_TOKEN" \
  --connect-to server.${CONSUL_DATACENTER}.${CONSUL_DOMAIN}:8443:consul-server-0:8443 \
  --cacert ${CONSUL_CACERT} \
  --data @${OUTPUT_FOLDER}global/intention-frontend.json \
  --request PUT \
  https://server.${CONSUL_DATACENTER}.${CONSUL_DOMAIN}:8443/v1/config

Apply new Consul client configuration

Before you can apply the new service configuration, you must copy the definition files into each Consul client VMs.

Tip

In the interactive lab environment, the HashiCups application nodes have a running SSH server. As a result, you can use ssh and scp commands to perform the following operations. If the nodes in your personal environment does not have an SSH server, you may need to use a different approach to create the configuration directories and copy the files.

First, configure the Consul configuration directory.

$ export CONSUL_REMOTE_CONFIG_DIR=/etc/consul.d/

Then, copy the configuration into the client VMs.

$ scp -i certs/id_rsa ${OUTPUT_FOLDER}/hashicups-db/svc/service_mesh/* hashicups-db:${CONSUL_REMOTE_CONFIG_DIR}; \
  scp -i certs/id_rsa ${OUTPUT_FOLDER}/hashicups-api/svc/service_mesh/* hashicups-api:${CONSUL_REMOTE_CONFIG_DIR}; \
  scp -i certs/id_rsa ${OUTPUT_FOLDER}/hashicups-frontend/svc/service_mesh/* hashicups-frontend:${CONSUL_REMOTE_CONFIG_DIR}; \
  scp -i certs/id_rsa ${OUTPUT_FOLDER}/hashicups-nginx/svc/service_mesh/* hashicups-nginx:${CONSUL_REMOTE_CONFIG_DIR}

Start sidecar proxies on client VMs

Once you copied the configuration files on the different VMs, login on each Consul client VMs and restart the Consul agent.

Start sidecar proxy for Database

$ ssh -i certs/id_rsa hashicups-db

Define the Consul configuration directory.

$ export CONSUL_CONFIG_DIR=/etc/consul.d/

Setup a valid token to interact with Consul agent.

$ export CONSUL_HTTP_TOKEN=`cat ${CONSUL_CONFIG_DIR}/agent-acl-tokens.hcl | grep agent | awk '{print $3}'| sed 's/"//g'`

Reload consul configuration.

$ consul reload
Configuration reload triggered

Finally, start the Envoy sidecar proxy for the service.

$ /usr/bin/consul connect envoy \
    -token=${CONSUL_HTTP_TOKEN} \
    -envoy-binary /usr/bin/envoy \
    -sidecar-for hashicups-db-1 > /tmp/sidecar-proxy.log 2>&1 &

The command starts the Envoy sidecar proxy in the background to not lock the terminal. You can access the Envoy log through the /tmp/sidecar-proxy.log file.

Once the Envoy sidecar is started, exit the ssh session to return to the bastion host.

$ exit

Start sidecar proxy for API

$ ssh -i certs/id_rsa hashicups-api

Define the Consul configuration directory and setup a valid token to interact with Consul agent.

$ export CONSUL_CONFIG_DIR=/etc/consul.d/ && \
  export CONSUL_HTTP_TOKEN=`cat ${CONSUL_CONFIG_DIR}/agent-acl-tokens.hcl | grep agent | awk '{print $3}'| sed 's/"//g'`

Reload consul configuration.

$ consul reload
Configuration reload triggered

Finally, start the Envoy sidecar proxy for the service.

$ /usr/bin/consul connect envoy \
    -token=${CONSUL_HTTP_TOKEN} \
    -envoy-binary /usr/bin/envoy \
    -sidecar-for hashicups-api-1 > /tmp/sidecar-proxy.log 2>&1 &

The command starts the Envoy sidecar proxy in the background to not lock the terminal. You can access the Envoy log through the /tmp/sidecar-proxy.log file.

Once the Envoy sidecar is started, exit the ssh session to return to the bastion host.

$ exit

Start sidecar proxy for Frontend

$ ssh -i certs/id_rsa hashicups-frontend

Define the Consul configuration directory and setup a valid token to interact with Consul agent.

$ export CONSUL_CONFIG_DIR=/etc/consul.d/ && \
  export CONSUL_HTTP_TOKEN=`cat ${CONSUL_CONFIG_DIR}/agent-acl-tokens.hcl | grep agent | awk '{print $3}'| sed 's/"//g'`

Reload consul configuration.

$ consul reload
Configuration reload triggered

Finally, start the Envoy sidecar proxy for the service.

$ /usr/bin/consul connect envoy \
    -token=${CONSUL_HTTP_TOKEN} \
    -envoy-binary /usr/bin/envoy \
    -sidecar-for hashicups-frontend-1 > /tmp/sidecar-proxy.log 2>&1 &

The command starts the Envoy sidecar proxy in the background to not lock the terminal. You can access the Envoy log through the /tmp/sidecar-proxy.log file.

Once the Envoy sidecar is started, exit the ssh session to return to the bastion host.

$ exit

Start sidecar proxy for NGINX

$ ssh -i certs/id_rsa hashicups-nginx

Define the Consul configuration directory and setup a valid token to interact with Consul agent.

$ export CONSUL_CONFIG_DIR=/etc/consul.d/ && \
  export CONSUL_HTTP_TOKEN=`cat ${CONSUL_CONFIG_DIR}/agent-acl-tokens.hcl | grep agent | awk '{print $3}'| sed 's/"//g'`

Reload consul configuration.

$ consul reload
Configuration reload triggered

Finally, start the Envoy sidecar proxy for the service.

$ /usr/bin/consul connect envoy \
    -token=${CONSUL_HTTP_TOKEN} \
    -envoy-binary /usr/bin/envoy \
    -sidecar-for hashicups-nginx-1 > /tmp/sidecar-proxy.log 2>&1 &

The command starts the Envoy sidecar proxy in the background to not lock the terminal. You can access the Envoy log through the /tmp/sidecar-proxy.log file.

Once the Envoy sidecar is started, exit the ssh session to return to the bastion host.

$ exit

Restart services to listen on `localhost`

Now that the service configuration is applied, intentions are applied, and Envoy sidecars are started for each service, all the components for the Consul service mesh are in place. The Consul sidecar proxies will route the services' traffic to the target destination.

Since traffic is flowing through the sidecar proxies, you no longer need to expose your services externally. As a result, reconfigure them to listen on the loopback interface only to improve overall security.

Reload the services to operate on the localhost interface.

$ ssh -i certs/id_rsa hashicups-db "bash -c 'bash ./start_service.sh local'"; \
  ssh -i certs/id_rsa hashicups-api "bash -c 'bash ./start_service.sh local'"; \
  ssh -i certs/id_rsa hashicups-frontend "bash -c 'bash ./start_service.sh local'"; \
  ssh -i certs/id_rsa hashicups-nginx "bash -c 'bash ./start_service.sh mesh'"

This tutorial still configures the NGINX service to listen on the VM's IP so you can still access it remotely. For production, we recommend using an ingress gateway to manage access to the service.

Retrieve the HashiCups UI address from Terraform.

$ terraform output -raw ui_hashicups

Open the address in a browser.

Confirm that HashiCups still works despite its services being configured to communicate on localhost. The Envoy sidecar proxies route each service's local traffic to the relevant upstream.

HashiCups UI

Next steps

In this tutorial, you learned how to migrate your Consul services from service discovery to Consul service mesh by updating each service's definitions, starting Envoy sidecar proxies for each service, and updating the services' dependencies to bind to localhost.

In the process, you integrated Zero Trust Security in your network and learned how to define explicitly define service-to-service permissions using intentions.

At this point, the NGINX service used to expose the application externally is still accessible over an insecure connection. While it is possible to configure it for secure traffic, using TLS, Consul offers an integrated solution for this.

(Optional) Destroy infrastructure

If you want to stop at this tutorial, you can destroy the infrastructure now.

From the ./self-managed/infrastruture/aws folder of the repository, use terraform to destroy the infrastructure.

$ terraform destroy --auto-approve

In the next tutorial, you will learn how to add a Consul API Gateway to your service mesh and secure external network access to applications and services running in your Consul service mesh.

For more information about the topics covered in this tutorial, refer to the following resources:

Access services in your service mesh

Tutorial scenario

Prerequisites

Login into the bastion host VM

Verify Envoy binary

Configure environment

Review and create intentions

Apply new Consul client configuration

Start sidecar proxies on client VMs

Start sidecar proxy for Database

Start sidecar proxy for API

Start sidecar proxy for Frontend

Start sidecar proxy for NGINX

Restart services to listen on localhost

Next steps

Restart services to listen on `localhost`
