Backup and restore operations

Introduction

Many business verticals require business continuity management (BCM) for production services. A reliable backup of your Terraform Enterprise deployment is crucial to ensuring business continuity. Your backup must include data held and processed by Terraform Enterprise's components so that operators can restore it within the organization's Recovery Time Objective (RTO) and to their Recovery Point Objective (RPO).

Below are the best practices, options, and considerations for backing up Terraform Enterprise. It also recommends standard operating procedures for redundant, self-healing configurations using public and private cloud infrastructure, which add resilience to your deployment and reduce the chances of requiring restoration.

This guide makes reference to the official Terraform Enterprise operating modes(opens in new tab) and is only relevant to Terraform Enterprise and not HCP Terraform. Also, most of this guide is only relevant to external mode and active-active deployments except where otherwise stated. Refer to Backup a Disk Deployment section below for specific details if you are running a disk deployment. If you have a disk deployment in production, we strongly recommend you liaise with your HashiCorp account team regarding urgent migration to one of the other operational modes because, while supported, it is not recommended for production use.

For region redundancy, read this guide in concert with the Terraform Installation Guide Multiple Regions page.

For recovery and restoration of Terraform Enterprise, refer to the next page of this guide.

Definitions

Business continuity (BC) is a corporate capability. This capability exists whenever organizations can continue to deliver their products and services at acceptable, predefined levels whenever disruptive incidents occur. When we refer to environments, these map to engineering/pre-development, development, various test (system integration testing, user acceptance testing and so on) and production. Reserve dedicated engineering instances for the platform team only, for replication, backup/restore and upgrade testing.

Two factors heavily determine your organization's ability to achieve BC:

1. Recovery Time Objective (RTO)(opens in new tab) is the target time set for the resumption of product, service, or activity delivery after an incident. For example, if an organization has an RTO of one hour, they aim to have their services running within one hour of the service disruption.
2. Recovery Point Objective (RPO)(opens in new tab) is the maximum tolerable period of data loss during an incident. For example, if an organization has an RPO of one hour, they can tolerate the loss of a maximum of one hour's data before the service disruption.

Based on these definitions, we recommend establishing the valid RTO/RPO for your Terraform Enterprise instance and approach BC accordingly. These factors determine your backup frequency and other considerations discussed below.

In this guide:

• Reference to a public cloud availability zone (AZ) is equivalent to a single VMware-based data center.
• Reference to a public cloud multi-availability zone is equivalent to a multi-data center VMware deployment.
• The main AZ is the primary. Any other AZs in the same region are the secondary. The secondary region is a business continuity/failover region only and is not an active secondary location. Consider all availability zones equal for the purposes of illustration.

Best practices

Maintain the backup and restore process

When you deploy Terraform Enterprise:

• Test the backup and restoration process and measure the recovery time to ensure it satisfies your organization's RTO/RPO.
• Document the backup and restoration process.
• Arrange for staff who did not write this document to run a test restore using it. This measure increases confidence in the backup and restore process.
• Use a regular schedule to test the backup and restoration process to ensure the documentation is reliable. This increases familiarity with the backup and restoration process and covers situations where staff leave.

Manage sensitive values

For automated deployments, you must manage several sensitive values. On Kubernetes, refer to this support page for base information(opens in new tab). The HVD deployment modules also provide further information specific to the deployment method and target platform - see below for further details. The methods below do not back up these data. We recommend HashiCorp Vault(opens in new tab) for storage of all pipeline secrets. Do not store any of these sensitive values in version control or allow them to leak into shell histories. Do not store any of these sensitive values in version control or allow them to leak into shell histories.

We recommend HashiCorp Vault(opens in new tab) for storage of all pipeline secrets.

Process audit logs

Audit log processing helps you identify the root cause during a data recovery incident.

Follow the guidance on this Terraform Enterprise logs resource page(opens in new tab) to aggregate and index logs from the Terraform Enterprise node(s) using a central logging platform such as Splunk, ELK, or a cloud-native solution. Use these as a diagnostic tool in the event of outage, scanning them case insensitively for ERROR and FATAL messages as part of root cause analysis.

Terraform Enterprise backup API

Terraform Enterprise has a Backup API(opens in new tab) but this primarily facilitates migrations from one operational mode to another. Only use the backup API for such migrations. Use cloud-native tooling instead for day-to-day backup and recovery on public cloud, and standard approaches for on-premise deployments as detailed below.

Initial considerations

The following recommendations improve your security posture, reduce the effort required to maintain an optimal Terraform Enterprise instance, and speed up deployment time during a restoration. Apply all relevant points in the list below for your target platform (VM-based or Kubernetes-based deployments).

• Harden server images using CIS benchmarking(opens in new tab).
• Secure Terraform Enterprise deployments on both single-tenant and shared Kubernetes clusters. If using Kubernetes clusters, lock down all APIs properly using automated configuration capabilities such as Ansible.
• If using VM-based deployments of Terraform Enterprise, use single-tenant, immutable instances using automation by repaving instances with patched images rather than patching them in place. This process requires you to maintain the setup configuration in the code used to deploy the system and is out of the scope of this document.
• Remove all unnecessary packages from the operating system.
• Ensure to store deployment configuration in a version control system and use git best practices on the repositories used to version the code.

Application server

We recommend you automatically replace application server nodes when a node or availability zone fails. Replacing the node provides redundancy at the server and availability zone level. Public clouds and VMware have specific services for this.

Click on the tab(s) below relevant to your cloud deployment for additional cloud-specific recommendations. The recommendation for all Kubernetes-based deployments is to deploy a cluster in line with the Terraform Installation Guide recommendations.

Object store

We recommend the following to support the object store's business continuity:

• Choose fast storage optimized for use that scales well and automatically replicates to another zone in the same region. Each public cloud has a well-known option in this space. For private cloud external mode deployments, you must use S3-compatible storage.
• Configure accidental/MFA deletion protection to prevent accidental deletion.
• Be aware that automated backup facilities provided by cloud service providers provide eventual consistency within a time window of around 10-15 minutes depending on network congestion. This means that in a failover situation, not all object changes may have succeeded - see below. It also means, however, that object corruption is also automatically replicated.

Click on the tab(s) below relevant to your cloud deployment for additional cloud-specific recommendations.

Database

Configure the database to be in line with Terraform Enterprise's PostgreSQL requirements(opens in new tab).

For high availability in a single public cloud region, we recommend deploying the database in a multi-availability zone configuration to add resilience against recoverable outages. For coverage against non-recoverable issues (such as data corruption), take regular snapshots of the database.

Click on the tab(s) below relevant to your cloud deployment for additional cloud-specific recommendations.

Redis cache

Because the Redis instance serves as an active cache for Terraform Enterprise, you do not need to maintain backups of the caching layer. The core recommendation is to maintain intra-region redundancy in line with other recommendations in the HVDs. Assuming you are running identical service resources in the secondary region, failing over the cache involves starting use of the cache cluster in the secondary region which commences unpopulated.

Backup a disk deployment

The backup approach for a disk operational mode deployment is simpler than for active-active mode because it involves a single machine and possibly its business continuity instance. Also, a disk deployment backup ensures the integrity of the machine and its attached data disk.

We only recommend using disk mode when provisioning on private cloud where the added complexity of managing an on-premise database, S3-compatible storage and a Redis instance are not already supported in your environment.

We do not recommend using disk deployments on public cloud since external and active-active modes provides better scalability. For Twelve Factor compliance(opens in new tab), use the same operational mode for both production and non-production.

• Follow the advice in the preceding VMware tabs for information which is applicable to disk mode deployments as well.
• Ensure to quiesce the database on disk instances before taking a database snapshot. Your backup software may or may not do this automatically.
• disk mode uses a separate mountable volume (data disk) that can come in many flavors. To ensure data integrity, ensure the mountable volume has the following capabilities (in this order):
  • Continuous volume replication
  • Use of the same volume mounted on the original instance
  • A backup restored to another volume
• Make copies available in multiple data centers to confer DC-redundancy.

Restore Terraform Enterprise

All business verticals require business continuity management (BCM) for production services, and the rise in cyber crime has intensified these requirements. To ensure business continuity, you must implement and test a recovery and restoration plan for your Terraform Enterprise deployment prior to go-live. This plan must include all aspects of data held and processed by Terraform Enterprise's components so that operators can restore it within the organization's recovery time objective (RTO) and to their recovery point objective (RPO).

This guide discusses the best practices, options, and considerations to recover and restore Terraform Enterprise. It also recommends redundant, self-healing configurations using public and private cloud infrastructure, which add resilience to your deployment and reduce the chances of requiring backups.

This guide assumes you are familiar with Terraform Enterprise backup processes and procedures. If not, first refer to the Terraform Enterprise Backup page to create backups for your Terraform Enterprise instance.

Most of this guide is only relevant to single-region, multi-availability zone, external or active-active operational mode deployments except where otherwise stated. Having a multi-region deployment does not preclude your potential need to restore data in one of the regions, because all automated data replication services you might use for active/passive architectural models automatically replicate corruption events.

We recommend you automate the recommendations listed below to reduce the recovery time.

Definitions and best practices

Business continuity (BC) is a corporate capability. This capability exists whenever organizations can continue to deliver their products and services at acceptable, predefined levels whenever disruptive incidents occur.

Two factors heavily determine your organization's ability to achieve BC:

1. Recovery Time Objective (RTO)(opens in new tab) is the target time set for the resumption of product, service, or activity delivery after an incident. For example, if an organization has an RTO of one hour, they aim to have their services running within one hour of the service disruption.
2. Recovery Point Objective (RPO)(opens in new tab) is the maximum tolerable period of data loss after an incident. For example, if an organization has an RPO of one hour, they can tolerate the loss of a maximum of one hour's data before the service disruption.

Based on these definitions, we recommend establishing the valid RTO/RPO for your Terraform Enterprise instance and approach BC accordingly. These factors determine your backup frequency and other considerations discussed below.

In this guide:

• See here(opens in new tab) for a definition of point-in-time-recovery (PITR).
• We express outage time as T0. The number after T represents the time relative to the outage time in minutes. For example, T-240 is equivalent to four hours before the established outage event start time.
• Source refers to the Terraform Enterprise instance that you need to recover. Destination refers to its replacement.
• A public cloud availability zone (AZ) is equivalent to a single VMware-based data center.
• A public cloud multi-availability zone is equivalent to a multi-data center VMware deployment.
• The main AZ is the primary. Any other AZs in the same region are the secondary.

Data management

Select the tab below for high level best practices for your scenario.

Record event data

In an outage situation, for all scenarios, we recommend that you record event data. This enables you to:

• Perform root cause analysis.
• Work with HashiCorp Support to reduce losses incurred.
• Identify tasks to prevent similar outages from occurring in the future.

For incident management, record the following information as soon as possible.

• The date and time when the change that led to the outage occurred.
• The date and time of the most recent, available runs and state files.
• The date and time of the most recent, available PostgreSQL database snapshot or backup.
• Whether the Terraform Enterprise application configuration values(opens in new tab) are safe.

Relationship between database and object store

Consider the database and object storage as one conceptual data layer for Terraform Enterprise even though they are technically separate. The database stores links to objects in the object storage and the application uses these links to manipulate the objects stored. For example, this means that restoring the database to an earlier version would then mean lost links to objects created since, even though those objects would still be present in the object store.

It is important to establish when the incident began. For example, if a workspace run had created a VM in a workspace at 11AM, if the state file is then corrupted, rewinding to a 10AM state version would mean that the state file would not reflect the running VM.

The steps to remediate any one issue depend on the issue details, so this document provides the main concepts and recommendations. If you have specific questions which are not addressed in this document, contact HashiCorp Support if you are troubleshooting an event.

Preparation

The steps to recover a down service depends on what the specific problem is, and which cloud scenario.

Before you attempt to recover the service, use the node-drain command on the application servers one at a time. This command attempts to stop processing of background jobs on the Terraform Enterprise node in a graceful manner.

Application server

As part of BCM, expect, and plan, for any outages. Well-known reasons for Terraform Enterprise application server failing include: underlying network or physical circuitry failures, operating system data issues, or kernel panics. Human error could also cause the application server to fail.

Application server recovery and restoration

For both external and active-active operational mode deployments, design your application servers to automatically replace failed worker nodes and to handle availability zone failures. This deploys redundancy at both the server and availability zone level.

The configuration must be the same in both the node and its replacement. Terraform Enterprise uses the encryption password (TFE_ENCRYPTION_PASSWORD) to decrypt the internal Vault unseal key and root token. If you do not have the encryption password, you cannot recover your application data.

Refer to the tab(s) below for specific recommendations relevant to your implementation.

Object store

Terraform Enterprise object storage contains a historical set of state files for all of your workspaces, logs of workspace runs, plan records and slugs, and work lists that persist tasks from plans to applies.

Terraform Enterprise deployments compliant with the reference architectures and Backup Recommended Pattern use either public cloud storage with eleven nines of availability, or an equivalent S3-compatible private cloud storage facility. This means that multiple copies of object store data exist in multiple locations. As a result, during expected outages, like disk or network failure, single-region object storage recovery is automatic. If you need region redundancy, you use regional object storage replication. Refer to the Multiple Regions section for more information.

This section covers best practices for object storage restoration from unexpected outages, like human error or corruption events.

Object store content loss and corruption

This section describes the effects of each object storage file type's loss and corruption on Terraform Enterprise. Refer to the next section for object storage file recovery recommendations. The recovery method depends on whether there is loss or corruption and also the cloud provider you are using.

Workspace current state loss and corruption

If the object store does not have a current workspace state file, this presents two problems:

1. The missing state file has represented either addition or deletion of running infrastructure.
2. You experience the following error on the next workspace run since this current state file is not readable.

Failed to save state: Error uploading state: Precondition Failed

The serial provided in the state file is not greater than the serial
currently known remotely. This means that there may be an update performed
since your version of that state. Update to the latest state to resolve
conflicts and try again

Error: Failed to persist state to backend.

The error shown above has prevented Terraform from writing the updated state
to the configured backend. To allow for recovery, the state has been written
to the file "errored.tfstate" in the current working directory.

Running "terraform apply" again at this point will create a forked state,
making it harder to recover.

To retry writing this state, use the following command:
    terraform state push errored.tfstate

Found errored.tfstate file, dumping contents...

If corruption occurs to the current state file of a workspace, the next run hangs and eventually fail with the following output.

Configuring remote state backend...
Initializing Terraform configuration...

Setup failed: Failed terraform init (exit 1): <nil>

Output:

Initializing the backend...

Successfully configured the backend "remote"! Terraform will automatically
use this backend unless the backend configuration changes.
There was an error connecting to the remote backend. Please do not exit
Terraform to prevent data loss! Trying to restore the connection...

Still trying to restore the connection... (2s elapsed)
Still trying to restore the connection... (5s elapsed)
...
Still trying to restore the connection... (5m21s elapsed)
Still trying to restore the connection... (5m42s elapsed)
Error refreshing state: Error downloading state: 500 Internal Server Error

Workspace non-current state loss and corruption

A workspace may contain non-current states (previous versions of the state file). If the object store does not have a workspace's non-current state, this does not impact workspace runs. However, when you try to access the missing state version in the UI, the following error results.

If corruption occurs in a workspace's non-current state, this does not impact workspace runs. However, when you try to access the corrupted state version in the UI, the following error results.

Logs loss and corruption

Find Terraform Enterprise logs in the following location based on your deployment.

If log files for historical plans and applies are missing or corrupted, this does not impact workspace runs. However, when you try to access the missing state version in the UI, the following error occurs since the Terraform Enterprise is unable to access the log files.

undefined

JSON plans and provider schemas loss and corruption

Terraform Enterprise writes JSON plans and provider schemas during normal operations.

• For Terraform Enterprise version v202108-1, only the Sentinel policy evaluation uses these objects.
• From Terraform Enterprise v202109-1 and later, the UI uses both JSON plan and provider schema objects to render structured plan output if configured in the workspace.

If the JSON plans and provider schemas are missing or corrupted, you are unable to view the structured plan rendering for historical runs.

Slugs loss and corruption

Some slugs contain caches of the most recent workspace run configurations. If the object store does not have those slugs, the following error occurs when you try to start a new plan from an existing workspace.

Setup failed: failed unpacking terraform config: failed to uncompress slug: EOF

However, since Terraform Enterprise generates new slugs for new workspace runs, new workspace runs are not affected.

The loss of slugs that do not contain workspace run configurations do not affect system operation and workspace runs. There is no way to differentiate slug types from object storage content listings.

Bucket loss and corruption

If you lose the object store, the following message results, similar to lost slugs containing workspace run configurations.

Setup failed: failed unpacking terraform config: failed to uncompress slug: EOF

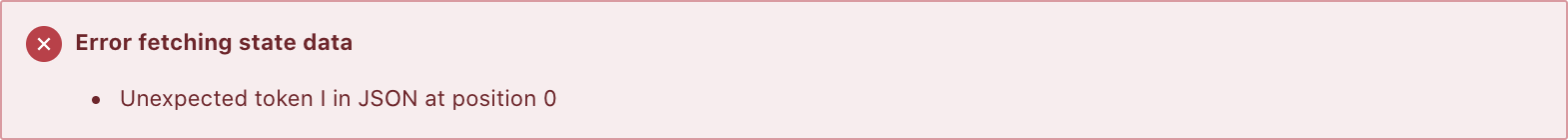

If corruption occurs to all of the objects in the object store, the UI can still operate with cached objects. When the cached objects expire, Terraform Enterprise tries to access the data from the object store. When this happens, the same preceding error occurs.

Recover lost object store content

The primary way to recover lost object store content is to enable object store versioning. Using this, you can recover deleted files from the versioned object storage by un-deleting the files. Refer to the tab(s) below for specific recommendations relevant to your implementation.

gsutil ls -a gs://my-bucket/archivistterraform/states/xxxxxxxx/sv-xxxxxxxxxxxxxxxx | \
       sort -nr | head -2 | tail -1

$ gsutil cp gs://my-bucket/archivistterraform/states/xxxxxxxx/sv-xxxxxxxxxxxxxxxx\#xxxxxxxxxxxxxxxx \
          gs://my-bucket/archivistterraform/states/xxxxxxxx/sv-xxxxxxxxxxxxxxxx

If you delete a workspace from Terraform Enterprise, you cannot recover it by manipulating the object storage alone. You also need to restore the database since links to the object store also need restoring. If the workspace deletion occurs after the last database backup, you cannot recover it.

In addition, when you delete a workspace, Terraform Enterprise deletes the corresponding objects from the object store, which creates delete markers in the S3 bucket. If you remove all delete markers to recover from an accidental object storage deletion, this also recovers objects from deleted workspaces. If you do not restore the database in this situation, the database would still not have links to those restored objects. This may be an acceptable option as opposed to identifying and undeleting only those deleted objects. Consult HashiCorp for specifics which may impact decision-making.

If you are unable to use these recommendations to recover the lost objects, use point-in-time-recovery (PITR) scripting to restore all the objects in the object store to just before the outage time (T0).

Since using PITR scripting effectively takes Terraform Enterprise back through time, restore the database to the same time. Follow the guidance in the Database section below. Ensure that the object store is more recent (younger) than the database, otherwise, the database may contain broken object storage links which has further adverse impact on the platform.

Recover corrupt object store content

You can recover corrupt files from versioned object storage by going back to the last-known "good" version.

In this section, current refers to the latest available state files which represent the existing deployed infrastructure. Last good refers to the most recent previous state file that Terraform Enterprise can process without error.

Terraform Enterprise writes a new state file in the object store for every applied workspace run that requires a change in resources. Terraform Enterprise stores each state file as separate objects. If corruption occurs in a workspace's current state file, all subsequent runs fail. Use the API to recover corrupted state data since you know the failed workspace's name.

The following example demonstrates this process. The table below represents an example workspace with three applies, each adding one VM to the cloud. The current state file represents three VMs running on the cloud. However, it is corrupt.

     ╭─────────────────────┬────────┬───────────────────────────────────╮
     │ ID                  │ SERIAL │ CREATED                           │
     ├─────────────────────┼────────┼───────────────────────────────────┤
+VM3 │ sv-2K1mF7GUimf12bEd │      2 │ 2021-09-08 15:26:09.228 +0000 UTC │ <- corrupt current
+VM2 │ sv-KxRnWxmpFsYqsNzp │      1 │ 2021-09-08 15:24:15.584 +0000 UTC │ <- last good
+VM1 │ sv-gdBm2KUqDuQdzSvQ │      0 │ 2021-09-08 15:23:00.23 +0000 UTC  │
     ╰─────────────────────┴────────┴───────────────────────────────────╯

In order to recover the corrupted state, you need to:

1. download the state file for the last good run (serial 1),
2. change the serial to 3, and
3. upload it as the new current.

This process assumes that Terraform Enterprise is running and the API is available.

The Version Remote State with the HCP Terraform API tutorial covers how to:

1. download the state file
2. modify and create the state payload (only update the serial to 3)
3. upload the state file

These instructions are similar for Terraform Enterprise. Update the hostname, organization, and workspaces to reflect your workspace you want to recover.

Once complete, the following occurs.

     ╭─────────────────────┬────────┬───────────────────────────────────╮
     │ ID                  │ SERIAL │ CREATED                           │
     ├─────────────────────┼────────┼───────────────────────────────────┤
+VM2 │ sv-xceRBCuExqFdvLEB │      3 │ 2021-09-08 16:01:39.372 +0000 UTC │ <- new current <--+
+VM3 │ sv-2K1mF7GUimf12bEd │      2 │ 2021-09-08 15:26:09.228 +0000 UTC │ <- corrupted      |
+VM2 │ sv-KxRnWxmpFsYqsNzp │      1 │ 2021-09-08 15:24:15.584 +0000 UTC │ <- last good -----+
+VM1 │ sv-gdBm2KUqDuQdzSvQ │      0 │ 2021-09-08 15:23:00.23 +0000 UTC  │
     ╰─────────────────────┴────────┴───────────────────────────────────╯

Since the latest run ID (serial 3) is the same as the last good one, the listed states in the UI shows two entries with the same run ID.

Set the apply method of the workspace to Manual apply.

Then, start a plan so Terraform Enterprise can identify which infrastructure to add into the state file so it reflects the current infrastructure. From the preceding table, the most recent added virtual machine is not represented in the latest state.

Plan: 1 to add, 0 to change, 0 to destroy.

In your local working copy of the repository, add, or modify, the remote backend in the terraform block to update the remote state on Terraform Enterprise. Replace hostname, organization and workspaces.name with your values.

terraform {
  required_version = "~> 1.14.1"
  required_providers {
    aws = {
      source = "hashicorp/aws"
    }
  }

  backend "remote" {
    hostname = "tfe.example.com"
    organization = "my-org"

    workspaces {
      name = "workspace1"
    }
  }
}

Then, configure the provider credentials in your local terminal.

Initialize your configuration when you are ready to import the existing infrastructure.

$ terraform init

Then, run terraform import for each listed object from the plan output to update the recovered state file. Obtain the necessary object ID(s) by referring to the relevant cloud resource. The following example command imports an EC2 instance with an ID of i-03a474677481b3380.

terraform import aws_instance.web i-03a474677481b3380

Import successful!

The resources that were imported are shown above. These resources are now in
your Terraform state and will henceforth be managed by Terraform.

When you are recovering corrupted state files, remember that infrastructure deletion is also possible. Consider the following example:

• At T-480 (8 hours ago), you have a workspace that deployed a virtual machine.
• At T-240 (4 hours ago), you backup your database.
• At T-120 (2 hours ago), you apply your configuration, which deletes the VM.
• At T-0, you experience a corruption event.

To recover the last good state, you restore your database to T-240 and rewind your object store to the same time. At this point, even though your state contains a VM, your configuration and the cloud API reflects no VM. If you generate a plan, it returns no changes.

Reconcile your state file with your configuration by running terraform apply -refresh-only.

$ terraform apply -refresh-only

You have restored and reconciled a corrupted or missing state file. If the workspace is VCS-backed, when all imports have completed, re-establish your VCS connection to HCP Terraform and re-run a final terraform plan. This returns no changes.

Database

This section discusses how to restore and recover your Terraform Enterprise PostgreSQL database. This assumes you followed the Backup page of this HVD. It also assumes point-in-time recovery on public clouds providing granular roll-back capability.

Database recovery

If there is an outage in multi-availability zone, single-region database instances and multi-DC private cloud, the database automatically switches the service to the secondary AZ/DC and the service resumes. If the database is in the process of failing over to a different availability zone when a workspace run triggers, the run may initially hang, resulting in possible 504 or 502 errors.

Error queueing plan
504 Gateway Time-out

Run auto-refresh canceled
502 Bad Gateway

If this happens, restart the failed run when the database reconnects.

Database restoration

You need to restore your database when unexpected database failures or corruption occurs (due to human errors, or hardware/software failures). The speed it takes you to restore your database after an outage depends on your RPO, and the frequency of your database backups and snapshots.

Consider the following:

• If a database worker node goes down, all database connections drop. The database may report open connections or pool usage until it hits its configured timeout.
• Terraform Enterprise uses write locks to protect the database writes. However, if a connection terminates mid-write, database corruption may occur. This is a general concern related to PostgreSQL database management rather than specific to Terraform Enterprise. This is why it is important to ensure the database backup is sound.
• The restoration method depends on the severity of the database corruption. In some cases, you could just re-index the database; in others, you need to do full restore.
• The database stores the Vault unseal token. It is important because it allows Terraform Enterprise to decrypt the data in the object store. Since this is a small entity by comparison to the size of the database and not updated often, there is a small chance of corrupting the unseal token.

If you need to restore the database, the recommended strategy is:

1. Notify your user base of the outage.
2. Determine the outage time (T0), so you have an anchor point in time to focus restoration efforts.
3. Take the application down.
4. Create a new database instance by restoring from a backup and applying relevant snapshots as applicable.
5. Create a new destination object store and copy the objects from the source object store attached to the broken instance.
6. Deploy a fresh Terraform Enterprise instance, configured to use the new, restored database and destination object store.

Reference the tab(s) below for specific recommendations relevant to your implementation. These recommendations focus on single-region restores. Refer to the multi-region section for multi-region considerations.

  for i in $(gcloud storage ls --recursive gs://source_bucket | grep '\#')
  do
    STAMP=$(echo ${i} | cut -d'\#' -f2)
    GETMETOBEFORE=$(
      printf "%d000000" \
      $(date -d '2025/09/10 19:40:00' + "%s")
    )

    if
      [ "${STAMP}" -lt "${GETMETOBEFORE}" ]
    then
      echo ${i}
    fi
  done

• Create a new database from the backup using the same settings. Note the path and connection details.
• Copy the deployment configuration file (Kubernetes Helm overrides.yml file or compose.yml for Docker Compose) from the source server(s) to the destination instance's deployment configuration. When the autoscaling group boots a new server(s), each one must have the correct configuration and be able to connect to the restored destination database instance and destination object store.
• Create the destination Terraform Enterprise instance using the destination database and object storage.
• Confirm platform health.
• Amend DNS to point the service address to the new load balancer.
• Since the object store contains a previous state in time, each workspace applied between the database restore point and T0 requires a terraform import of any running infrastructure not represented in the state. Follow the example in the Recover corrupt object store content section in this document to do this.
• Notify your user base when you are back online.

Redis cache

This section is only relevant if you are running the active-active operational mode. There are no explicit backup requirements because Terraform Enterprise uses Redis as a cache. However, ensure your Redis instance has regional availability to protect against zone failure.

Restore a disk mode Terraform Enterprise instance

This section discusses the recovery and restoration process for disk operational mode Terraform Enterprise instances. Refer to the Operational Mode Decision documentation for information on Terraform Enterprise operating modes.

disk mode recovery

Because the same mounted volume stores the Terraform Enterprise object store and database, recovery of disk mode deployments involve recovery of the machine or associated disk using appropriate recovery technologies, depending on the outage.

If you are using tooling such as Dell EMC RecoverPoint for Virtual Machines or HPE Zerto, you already have systems policy set up to recover the Terraform Enterprise workload automatically in the case of a failure. Online continuous data protection platforms are strongly recommended for automated recovery when using single-machine Terraform Enterprise deployments, and we recommend using these to recovery the system in an outage situation. The process differs depending on the recovery platform in place. The alternative to this is to expect to restore the platform in the event of an outage.

Mounted disk mode restoration

Restoration of disk operational mode instances involve deploying a replacement VM from a backup. As the establishment of business RTO and RPO are the same for disk mode and external mode deployments, the amount of remediation required after restoration completes depends on how far back you have to go to restore your data. Refer to the Object Store section in this document for recommendations regarding import of deployed infrastructure objects when updating workspace state.

When restoring Terraform Enterprise in disk mode, consider the following steps.

1. Notify your user base of the outage.
2. Determine the outage time (T0).
3. Based on the Reference Architecture for VMware, you have data intact in one or both centers. You could have done this by replicating the data layer using a technology such as lsyncd in the case of isolated data disks, or using a shared device from a SAN or NAS.

Bring up Terraform Enterprise on the secondary host, and confirm it can read the data disk.

1. When the restore is complete, start Docker. If you establish data integrity Terraform Enterprise starts.
2. Availability governs the data center you decide to rerun the preceding processes in. If you have brought up Terraform Enterprise in the secondary data center, there is either a natural business process regarding safe return to the primary data center, or, if the data centers are equivalent, no further technical work is necessary.
3. Notify your user base when you are back online.
