Application Aware Intentions with Consul Service Mesh

15min
Consul
Interactive

In the Secure Service Communication with Consul Service Mesh and Envoy tutorial, you deploy services into your Consul service mesh and regulate service-to-service communication.

In this tutorial, you will setup service (L7) intentions using configuration entries and configure intentions to allow only a certain path of the application to be served.

Prerequisites

In order to deploy and test Consul service intentions, you will need the following resources deployed in a non-production environment:

A Consul version 1.13.1 cluster or later with service mesh enabled
One node, hosting an instance of a service, called api.
One node, hosting a web service, you are going to use to route requests to the api services. The web service must be configured to consume the api service as an upstream.
[Optional] One node running as an ingress gateway.

Tip

The content of this tutorial also applies to Consul clusters hosted on HashiCorp Cloud (HCP).

Initial environment setup

The diagram below shows the minimal architecture needed to demonstrate the functionality.

Architectural diagram showing two services and an external service within a Consul service mesh

Launch Terminal

This tutorial includes a free interactive command-line lab that lets you follow along on actual cloud infrastructure.

Security Warning

This tutorial is not for production use. By default, the lab will install an insecure configuration of Consul.

Service application

This tutorial uses a fake-service application that simulates a multi-tier environment and offers:

a / path to provide a JSON structure representing the system response
a /ui path to provide a web interface
a /health path to be used for health-checks

Configure service-defaults

Service intention rules which utilize permissions are restricted to destination services that define their protocol as HTTP. You can configure your service protocol as HTTP individually using a service-defaults config entry or globally using proxy-defaults.

Before being able to define intentions, you must define service-defaults for both the api and the web service.

Create a file named default-api.hcl with the following content:

default-api.hcl

Kind           = "service-defaults"
Name           = "api"
Protocol       = "http"

Once you have created the file, apply the configuration to Consul.

$ consul config write default-api.hcl

Example output:

Config entry written: service-defaults/api

Create a file named default-web.hcl with the following content:

default-web.hcl

Kind           = "service-defaults"
Name           = "web"
Protocol       = "http"

Once you have created the file, apply the configuration to Consul.

$ consul config write default-web.hcl

Example output:

Config entry written: service-defaults/web

In an empty Consul service mesh configuration you can apply the default settings for services using proxy-defaults.

Warning

Applying the proxy-default entry described here on an existing datacenter might have unwanted behavior since it will change the default protocol for services in the service mesh to HTTP. Make sure you do not have services or integrations that might be affected by the change before applying it.

Create a file named default-proxy.hcl with the following content:

default-proxy.hcl

Kind      = "proxy-defaults"
Name      = "global"
Config {
  protocol = "http"
}

Once you have created the file, apply the configuration to Consul.

$ consul config write default-proxy.hcl

Example output:

Config entry written: proxy-defaults/global

Configure zero-trust communication with a default intention

Warning

In production environments, a standard practice includes setting the default_policy to deny. The default ACL policy will then be inherited by the default service intention. Read more on this in Secure Consul with Access Control Lists (ACLs) tutorial.

For this tutorial, you will define a default intention policy that denies all service communication.

Check below to ensure you have applied the desired configuration to your environment.

Consul UI showing intentions tab and a single deny_all intention

intention-config.hcl

Kind = "service-intentions"
Name = "*"
Sources = [
  {
    Name   = "*"
    Action = "deny"
  }
]

From the same directory where you saved this file, run the following command on your terminal to initialize these intention rules.

$ consul config write intention-config.hcl
Config entry written: service-intentions/*

$ curl --silent  localhost:8500/v1/connect/intentions | jq

Example output:

[
  {
    "SourceNS": "default",
    "SourceName": "*",
    "DestinationNS": "default",
    "DestinationName": "*",
    "SourceType": "consul",
    "Action": "deny",
    "Precedence": 5,
    "CreateIndex": 42,
    "ModifyIndex": 42
  }
]

If you try connecting to the web service using the service mesh, you will not be able to connect.

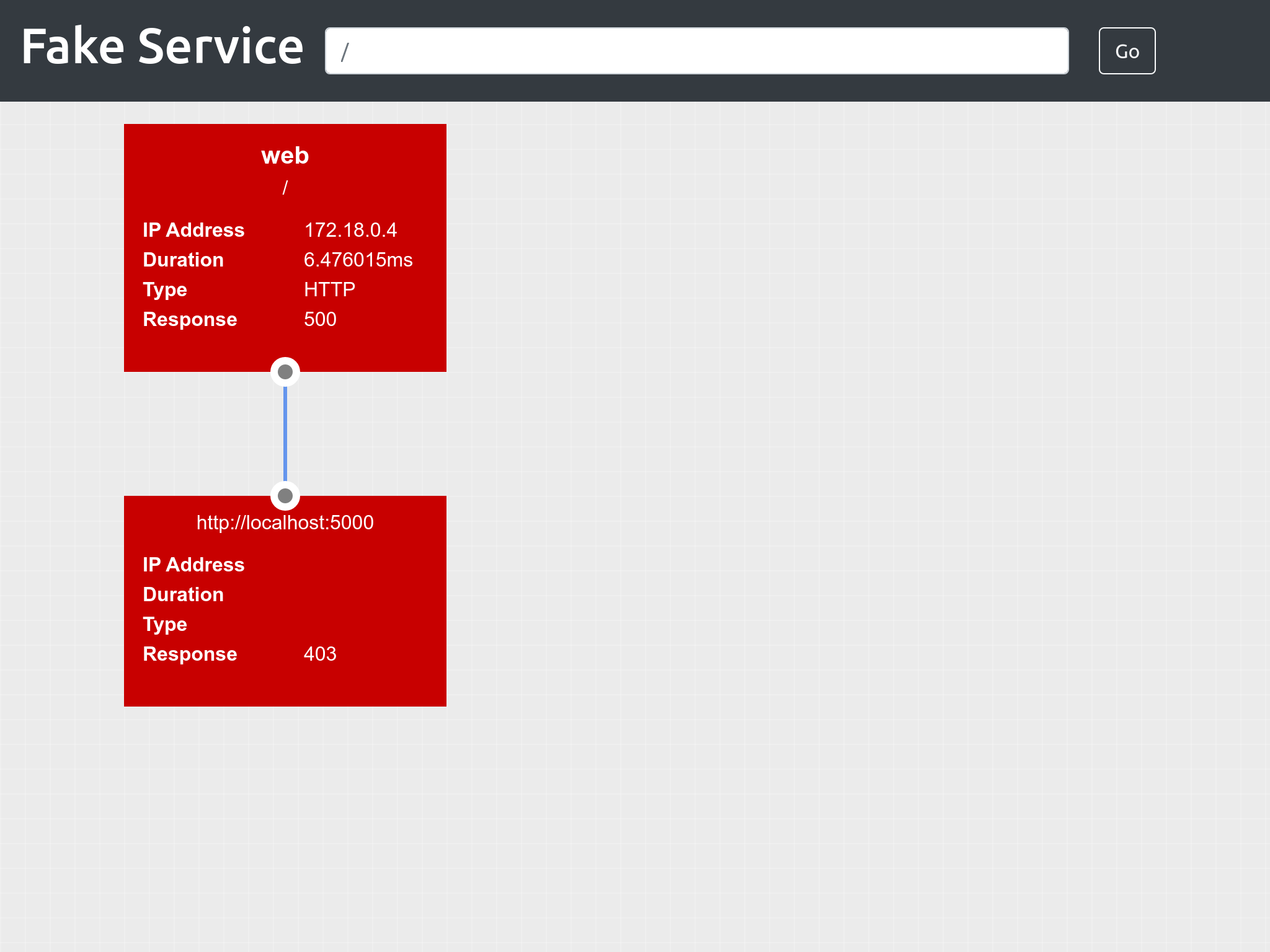

Application UI showing faulty connection

If you have Consul ACLs enabled, the default intention policy is inherited from the default ACL policy. You can skip this step by setting a default policy that denies connections, and only enable necessary connections as shown later in the tutorial.

Apply service intention defaults with configuration entries

Consul has the ability to create service intentions as configuration entries. Service intentions can be applied globally, against one or many instances of a service.

To make the api service accessible from the web service, you will need to define an intention that permits communication between service web and service api.

Create a file named config-intentions-api.hcl with the following content:

config-intentions-api.hcl

Kind = "service-intentions"
Name = "api"
Sources = [
  {
    Name   = "web"
    Action = "allow"
  },
  # NOTE: a default catch-all based on the default ACL policy will apply to
  # unmatched connections and requests. Typically this will be DENY.
]

and apply the configuration with:

$ consul config write config-intentions-api.hcl

Example output:

Config entry written: service-intentions/api

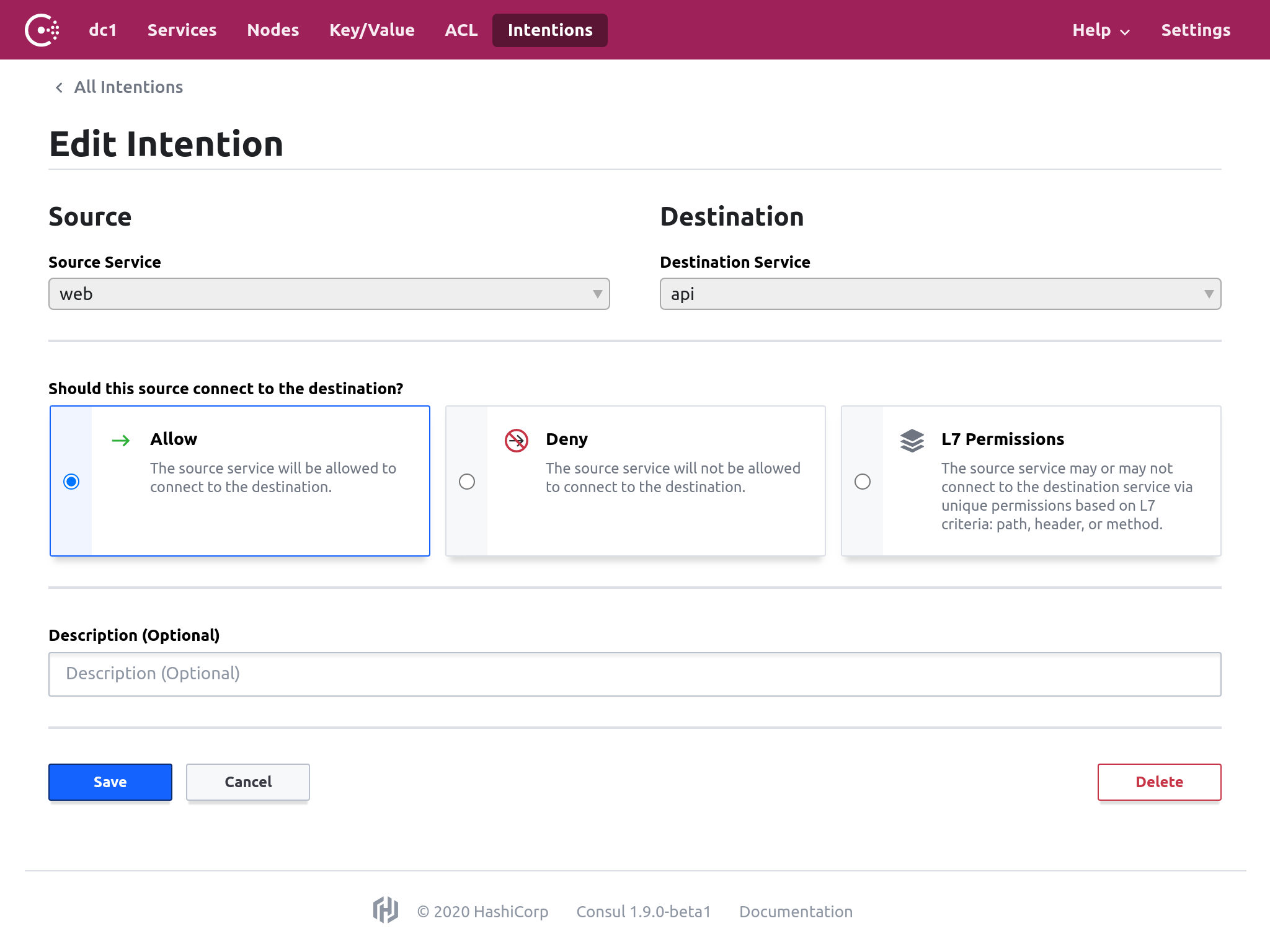

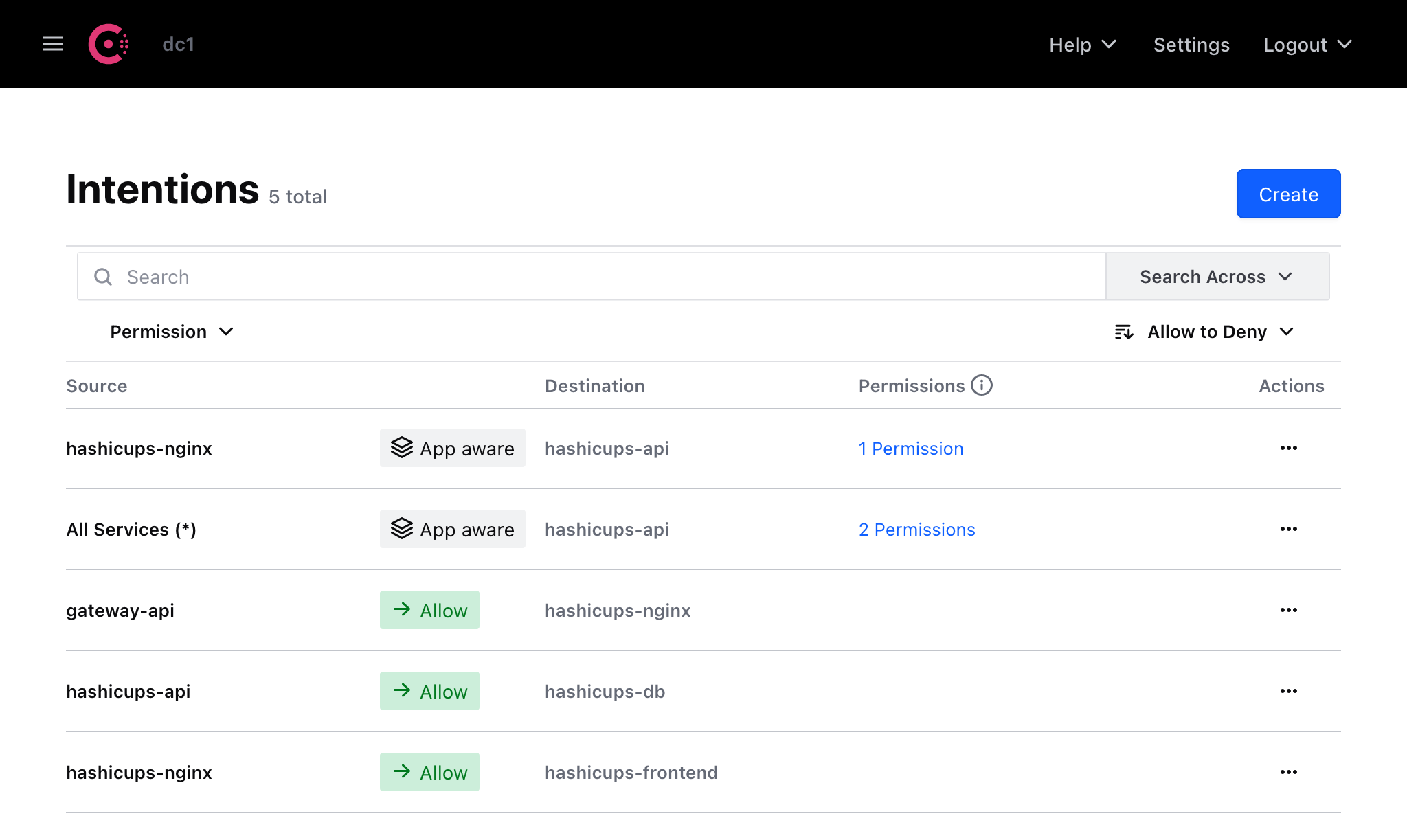

Once the intention is created, you can verify it shows up in the Consul UI.

Consul UI showing intentions tab a deny_all intention and one intention for web>api

Confirm service communication

Once you have configured the intention, you can try connect to the web service. If the service is accessible on the node running it, you will see the service is now healthy:

Application UI showing good connection

Ingress gateways and intentions (optional)

If you need to access the service from outside the service mesh, you will need to setup an ingress gateway.

Use the following configuration file to setup an ingress gateway for the web service:

ingress-gateway.hcl

Kind = "ingress-gateway"
Name = "ingress-service"

Listeners = [
 {
   Port = 8080
   Protocol = "http"
   Services = [
     {
       Name = "web"
     }
   ]
 }
]

This will enable an ingress gateway that will allow access to the web service on port 8080 of the gateway node.

Configuration Info: When using an http listener in the ingress gateway configuration, Consul will only accept requests to the ingress gateway service if the hostname matches the internal naming convention <service_name>.ingress.*. If you need the service to be accessible using a different hostname or an IP, please refer to the ingress gateway configuration entry documentation.

Apply service intentions

To enable external access to the web service, you will need to setup an extra intention that will permit connections between the ingress gateway service and the web service.

In this tutorial, you will setup a more fine grained configuration where you will only allow connections from the ingress gateway on the /ui path and deny connections on the /health path.

Create a file named config-intentions-web.hcl with the following content:

config-intentions-web.hcl

Kind = "service-intentions"
Name = "web"
Sources = [
  {
    Name = "ingress-service"
    Permissions = [
      {
        Action = "allow"
        HTTP {
          PathExact = "/ui"
          Methods   = ["GET"]
        }
      }
      {
        Action = "deny"
        HTTP {
          PathExact = "/health"
          Methods   = ["GET"]
        }
      }
    ]
  },
  # NOTE: a default catch-all based on the default ACL policy will apply to
  # unmatched connections and requests. Typically this will be DENY.
]

and apply the configuration with:

$ consul config write config-intentions-web.hcl

Example output:

Config entry written: service-intentions/web

Confirm service communication

You can use the intention match API to retrieve all relevant intentions for specific services.

For example, the following command retrieves all intentions that have web as their source:

$ curl --silent "http://consul.service.dc1.consul:8500/v1/connect/intentions/match?by=source&name=web" | jq

{
  "web": [
    {
      "SourceNS": "default",
      "SourceName": "web",
      "DestinationNS": "default",
      "DestinationName": "api",
      "SourceType": "consul",
      "Action": "allow",
      "Precedence": 9,
      "CreateIndex": 60,
      "ModifyIndex": 61
    },
    {
      "SourceNS": "default",
      "SourceName": "*",
      "DestinationNS": "default",
      "DestinationName": "*",
      "SourceType": "consul",
      "Action": "deny",
      "Precedence": 5,
      "CreateIndex": 49,
      "ModifyIndex": 49
    }
  ]
}

You can also ensure that the /health path is not permitted by using curl:

$ curl web.ingress.consul:8080/health

That should output a permission error:

RBAC: access denied

Challenge

Try to change the intentions to allow access to / path and while denying the ui path. Once you have applied the new configuration, start a new instance of the service from outside the service mesh and see if the new application is able to connect to the web service inside the Consul service mesh.

Next steps

By completing this tutorial you learned more advanced concepts on how to create and manage your service (L7) intentions in Consul.

You can review the full list of options for the service_intentions configuration entry in the documentation

You can learn more about the other options for traffic splitting available in Consul from our Traffic Splitting for Service Deployments tutorial.

If you want to test and configure the load balancing policies available in Consul service mesh you can complete the Load Balancing for Consul Service Mesh with Envoy tutorial.

If you want to learn more on how to deploy an ingress gateway for your Consul service mesh, you can complete the Allow External Traffic Inside Your Service Mesh With Ingress Gateways tutorial.
