Enforce a zero-trust network with Consul service mesh

Injecting the service mesh sidecars is the first step in configuring a zero-trust network and ensuring that the communication between your services is automatically authenticated and encrypted using mutual TLS (mTLS). The second step is to configure authorization policies for inter-service communications.

In this tutorial, you will secure service mesh traffic using Consul intentions.

Prerequisites

• A Kubernetes cluster
• kubectl to interact with your Kubernetes cluster and connect to Consul containers.
• This tutorial assumes you have completed the steps in Getting Started with Consul Service Mesh for Kubernetes. Your environment will need to configured according to the instructions in that tutorial in order to be able to test the commands in this tutorial.

Intentions

Before microservices, authorization of inter-service communication was primarily enforced using firewall rules and routing tables. Consul simplifies the management of inter-service authorization with intentions. Intentions allow operators to define service-to-service communication permissions by service name. This paradigm is a vastly improved operator user experience compared to firewall rules and routing tables. Intentions are one of the cornerstones of zero-trust networking in Consul.

Default policies

If you have been following along with the tutorials in this collection, you have not enabled Consul ACLs. The default policy for intentions in an environment where ACLs are not enabled is to permit all traffic. This means all the services deployed to the service mesh will be allowed communicate with each other by default. If Consul ACLs are enabled in your environment, then the default intentions policy is inherited from the default ACL policy.

Create a deny all intention

The first intention you will create changes the allow all policy where all traffic is allowed unless denied in specific rules, to a deny all policy where all traffic is denied and only specific connections are enabled.

To create an intention you can register it with a CRD using kubectl. Previously, you downloaded a git repository. From the root of that repository, change directories into the directory that contains the files you will use for this tutorial.

$ cd service-mesh/zero-trust-network

In that directory, you will find two files. The file named deny-all.yaml contains a ServiceIntentions CRD that will change your service mesh from a default allow environment to a default deny environment. This means that no services will be able to communicate with each other, unless you explicitly allow them to communicate by defining specific intentions. The contents of the deny-all.yaml file are listed here for your convenience.

apiVersion: consul.hashicorp.com/v1alpha1
kind: ServiceIntentions
metadata:
  name: deny-all
spec:
  destination:
    name: '*'
  sources:
    - name: '*'
      action: deny

By specifying the wildcard character (*) in the destination field this intention will prevent all service-to-service communication, therefore, traffic between the previously deployed HashiCups services will now be prevented.

Use kubectl to apply the deny all intention.

$ kubectl apply -f deny-all.yaml
serviceintentions.consul.hashicorp.com/deny-all created

Check intentions

Now you can use the Consul UI to verify that the intention was created. If you have closed your port-forward session for the Consul UI from the previous tutorial, you can re-open it now with the following command.

$ kubectl port-forward service/consul-ui 18500:80 --address 0.0.0.0

Open the Consul UI by visiting http://localhost:18500 in a separate tab and navigate to the Intentions tab in the Consul UI. You can verify the new intention is now present in the page.

If you have closed your port-forward session for the HashiCups demo application from the previous tutorial, you can re-open it now with the following command.

$ kubectl port-forward service/frontend 18080:80 --address 0.0.0.0

Check the UI for the frontend service, http://localhost:18080. You will notice that a default error message is displayed.

Allow service communication with intentions

Once you have defined the default policy as deny all, you can authorize traffic between the different HashiCups services by defining a ServiceIntentions CRD for each required service interaction. The service-to-service.yaml file in your current working directory has all the necessary YAML configuration, and has been included here for you to review.

apiVersion: consul.hashicorp.com/v1alpha1
kind: ServiceIntentions
metadata:
  name: frontend-to-public-api
spec:
  destination:
    name: public-api
  sources:
    - name: frontend
      action: allow
---
apiVersion: consul.hashicorp.com/v1alpha1
kind: ServiceIntentions
metadata:
  name: public-api-to-product-api
spec:
  destination:
    name: product-api
  sources:
    - name: public-api
      action: allow
---
apiVersion: consul.hashicorp.com/v1alpha1
kind: ServiceIntentions
metadata:
  name: product-api-to-postgres
spec:
  destination:
    name: postgres
  sources:
    - name: product-api
      action: allow

This YAML can be used to create the following intentions:

• frontend -> public-api
• public-api -> product-api
• product-api -> postgres

Once created, these intentions will allow communication between the different services included in the HashiCups demo application.

Use kubectl to create the intentions.

$ kubectl apply -f service-to-service.yaml
serviceintentions.consul.hashicorp.com/frontend-to-public-api created
serviceintentions.consul.hashicorp.com/public-api-to-product-api created
serviceintentions.consul.hashicorp.com/product-api-to-postgres created

Check the Intentions tab in the Consul UI to verify the new intentions were created.

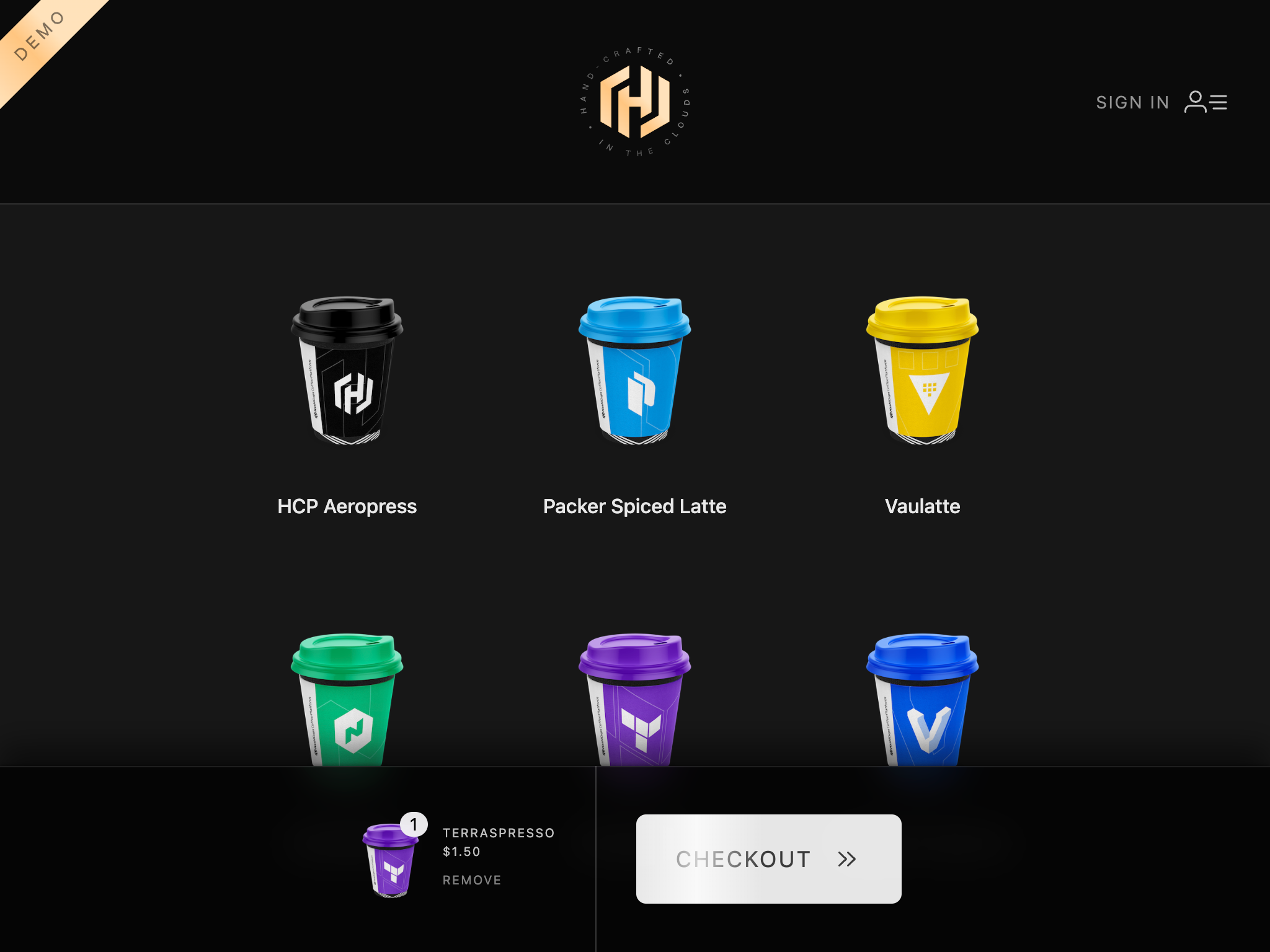

Check the UI for the HashiCups application at http://localhost:18080. You will notice that the HashiCups UI now reachable again.

Understand the anatomy of an intention

Intentions control which services can communicate with each another and are enforced by the sidecar proxy on inbound connections. The identity of the inbound service is verified by its TLS client certificate. The sidecar proxy then checks if an intention exists that authorizes the inbound service to communicate with the destination service. If the inbound service is not authorized, the connection will be terminated.

An intention has four parts:

• Source service - Specifies the service that initiates the communication. It can be the full name of a service or * to refer to all services.
• Destination service - Specifies the service that receives the communication. This will be the upstream you configured in your service definition. It can be the full name of a service or * to refer to all services.
• Permission - Defines whether the communication between source and destination is permitted. This can be set to either allow or deny.
• Description - Optional metadata field to associate a description with an intention.

Next steps

In this tutorial, you learned how to create intentions using CRDs. Using intentions, you were able to define traffic rules for your service mesh without the need to manually add firewall rules or use any other traffic shaping software.

In the next tutorial, Manage Traffic with Consul Service Mesh, you will be introduced to the comprehensive traffic management features that Consul provides at the proxy, service, and WAN levels.
